In the field of modern electrical and electronic equipment, Toroidal Transformer has gradually become the mainstream choice due to its high efficiency, low noise, small size and many other advantages. Whether in the field of audio equipment, medical instruments, industrial automation or green energy, toroidal transformers play a key role.

1. Full explanation of the principle and structure of toroidal transformers

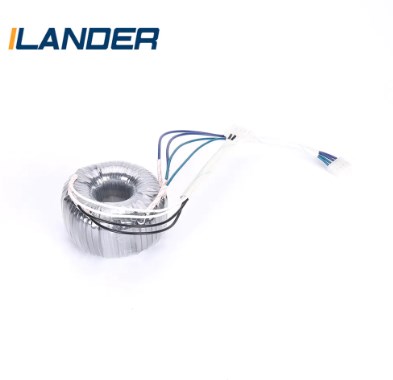

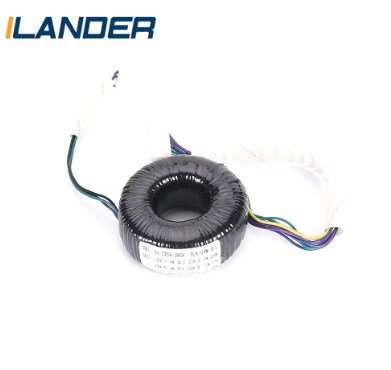

A toroidal transformer is an electric power conversion device with a ring-shaped iron core. It is made of silicon steel sheets or iron-nickel alloys wound into a closed ring as the core structure. The primary and secondary windings of the coil are wrapped around its ring core to complete the power transfer. Its working principle is still based on Faraday's law of electromagnetic induction, that is, when the primary winding is passed with alternating current, an alternating magnetic flux is generated in the iron core, and a secondary voltage is induced.

Compared with the traditional EI type transformer, the toroidal structure has the following structural advantages:

Stronger magnetic flux closure and less magnetic leakage;

Smaller space is occupied and easy to install;

The coil winding is more compact and the power conversion efficiency is high;

The whole machine is lighter and has low vibration and noise.

2. Performance advantages: Why are toroidal transformers becoming more and more popular?
1. High energy efficiency and low loss
Due to the closed structure of its iron core, the toroidal transformer has the shortest magnetic flux path and the smallest magnetic resistance, which greatly reduces hysteresis loss and eddy current loss. Compared with ordinary transformers, its energy efficiency can be improved by more than 5%, which is especially suitable for energy-sensitive equipment.

2. Strong anti-interference ability
The iron core of the toroidal structure has no magnetic flux leakage point, which can effectively reduce electromagnetic interference (EMI) to the surrounding circuits. This makes it an ideal transformer choice for audio equipment, power modules and precision instruments.

3. Low noise and low vibration
Due to the symmetrical and continuous magnetic circuit, the toroidal transformer generates very little mechanical vibration and electromagnetic hum during operation, which is particularly suitable for environments with extremely high requirements for quietness, such as medical equipment, recording studios, etc.

4. Flexible installation and strong customization
Its compact structure and regular shape make it easy to embed in various chassis or equipment. In addition, manufacturers can highly customize it according to customer requirements such as voltage, current, frequency, insulation level, etc.

3. Typical application scenarios: core driving force of multiple industries

High-end audio system
In high-fidelity (Hi-Fi) audio systems, the purity of power supply directly determines the sound quality. The low noise and high stability output of the toroidal transformer can effectively reduce the impact of AC noise on audio amplification, and is the first choice for audiophile-grade audio power supply.

Medical equipment field
Medical equipment requires stable power supply and low interference. Toroidal transformers are widely used in B-ultrasound, monitors, surgical electrosurgical knives and other equipment due to their low EMI characteristics.

Industrial control system
In PLC, servo control, industrial control power supply and other systems, toroidal transformers improve the overall reliability and operating life of the equipment with their high efficiency and long-term stable working ability.

Green energy equipment
In new energy equipment such as solar inverters and wind power generation systems, the efficiency and heat loss requirements of transformers are extremely high. Toroidal transformers perform particularly well under high frequency and medium and high power conditions.

4. Toroidal transformer selection guide: five key parameters to keep in mind
Power (VA): The appropriate capacity must be selected according to the actual power demand of the load, and it is recommended to retain more than 20% redundancy.

Input/output voltage: It is necessary to clarify the grid input and load requirements, and pay attention to whether multiple sets of secondary outputs are required.

Insulation level: Commonly Class B (130℃) or Class F (155℃), special industries (such as medical) must comply with relevant certifications.

Size and installation method: Choose a suitable chassis space and installation method (center bolt, adhesive fixation, etc.).

Certification and safety standards: It is recommended to give priority to products that have passed CE, UL, ROHS, ISO and other certifications to ensure safe use.

Toroidal transformers play an indispensable role in modern industrial and electronic systems. From energy saving, noise reduction to high stability, it is the core guarantee of high-quality power supply. With the development of intelligent manufacturing and green energy, its application scenarios and value will become more and more extensive.
