In modern power systems, transformers are the core equipment for power transmission and distribution, and their performance is directly related to the stability and efficiency of the entire system. Among the many types of transformers, R Core Transformer is being adopted by more and more engineering projects and high-end equipment due to its unique structural design, low loss, high efficiency and other advantages.

What is R Core Transformer? What is unique about the structural design?

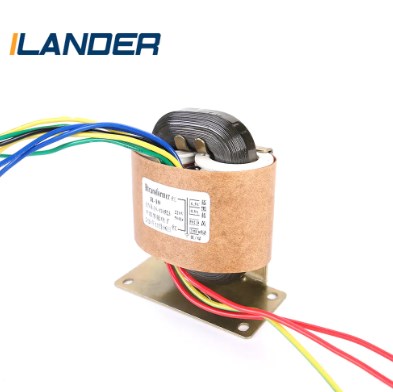

R Core Transformer is a power transformer using a round core structure. Its core is an "R" shaped closed structure, which is made of continuously wound silicon steel sheets. Compared with traditional EI or U-type core transformers, R Core has the following structural advantages:

Gapless closed magnetic circuit: R-type core is a closed ring structure, the magnetic flux path is uniform and unbroken, reducing magnetic flux leakage;

Axisymmetric design: It is conducive to reducing mechanical vibration and electromagnetic noise;

Compact volume: The circular design saves more space and is convenient for miniaturization and integrated application;

360° winding distribution: The winding evenly surrounds the core, which helps to improve heat dissipation and inter-turn electric field distribution.

Why is R Core Transformer more efficient? ——The "Hidden Champion" of Loss Control
Energy saving and consumption reduction has always been an important topic in the power industry, and R Core Transformer has shown excellent performance in the following aspects:

1. Low iron loss
R-type core uses high-quality cold-rolled oriented silicon steel sheets and is processed by continuous winding to avoid gaps and poor contact in traditional spliced ​​cores, significantly reducing hysteresis loss and eddy current loss.

2. Low no-load current
Thanks to its closed magnetic circuit structure, the no-load current of R Core Transformer is more than 30% lower than that of ordinary transformers, which is particularly suitable for electronic power systems with high no-load performance requirements.

3. Excellent thermal stability
The R-type winding adopts a toroidal winding layout, which improves the heat dissipation efficiency and is combined with high thermal conductivity materials to ensure stability and reliability under high load or long-term operation conditions.

Application scenarios: ideal choice for high-end equipment and sensitive equipment
Due to its advantages of low noise, low interference, and high efficiency, R Core Transformer is widely used in the following fields:

Medical equipment: MRI, X-ray machines, ECG monitoring equipment and other equipment that are sensitive to electromagnetic interference;

Audio equipment: power transformers in high-fidelity audio systems provide purer electricity;

Industrial automation control systems: especially in precision CNC machine tools and servo systems;

New energy systems: such as solar inverters, energy storage converters, etc.;

Communication base stations: low-interference design ensures signal transmission quality;

High-end home appliances: the pursuit of low-noise and high-efficiency power supply in smart home systems is promoting the popularization of R Core applications.

With its unique structural design and excellent electrical performance, R Core Transformer has shown great application potential in the current wave of energy-saving, environmentally friendly, and efficient power system upgrades. Especially in medical, audio, industrial control and other occasions that are sensitive to energy efficiency and noise, its performance is remarkable. With its long-term energy-saving benefits and stability, the R-type iron core transformer will undoubtedly become one of the preferred core components of high-end power equipment in the future. For enterprises and engineering projects that pursue performance and reliability, R Core Transformer is a technological breakthrough that cannot be ignored.
