R Core Transformer Single-phase Transformer R10
  • R Core Transformer Single-phase Transformer R10 details
  • R Core Transformer Single-phase Transformer R10 details
  • R Core Transformer Single-phase Transformer R10 details

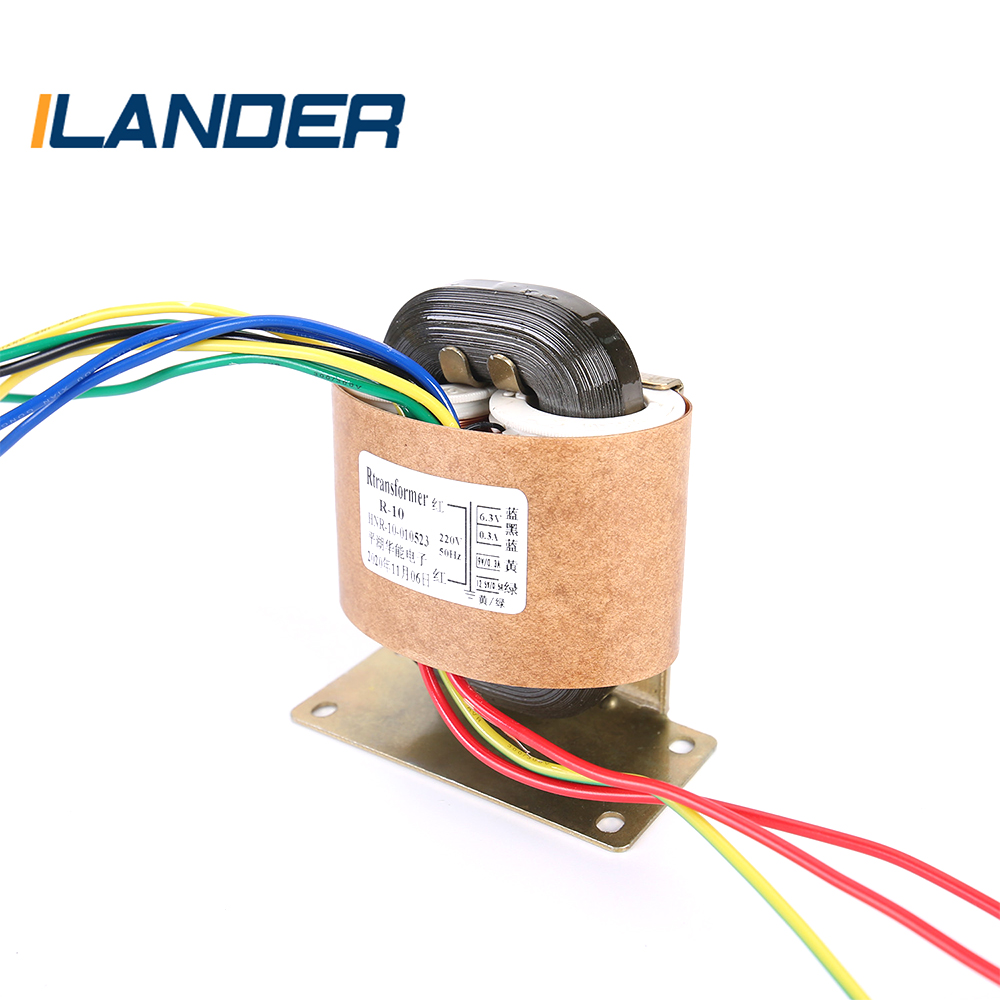

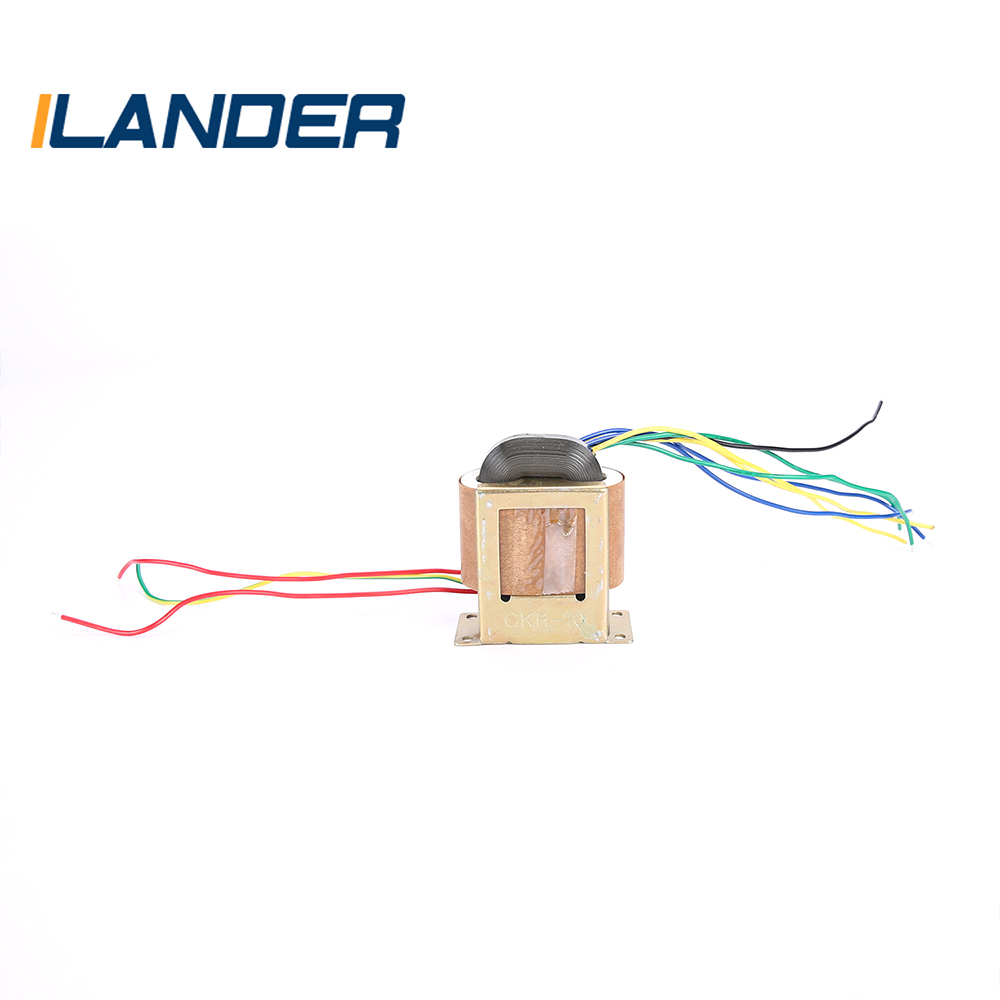

R Core Transformer Single-phase Transformer R10

The iron core of the R-type transformer is made of high-quality oriented cold-rolled silicon steel strips of different widths and made into a waist circle, and the cross-section is circular, which can be wound without cutting. Therefore, the transformer manufactured has no noise, small magnetic leakage, small no-load current, low iron loss, and high efficiency; And because the coil is cylindrical and the length of the copper wire in each circle is short, it has small internal resistance and overload fluctuation, low copper consumption and temperature rise;In addition, the primary and secondary coils are respectively fired with skeletons made of flame-retardant PBT engineering plastics, resulting in high electrical strength and good flame retardancy.

QUOTE NOW
PREV：No previous productNEXT：No next product

PRODUCT DESCRIPTION

R Core Transformer

Classification: Power Transformer

Structure Classification: R-type Iron-core Transformer

Sort by Phase Number: Three Phase Transformer

Input Voltage: 110V, 220V, 380V (customizable)

Output Voltage: 6V-220V (customizable)

Frequency: 50Hz/60Hz

Insulation Class: Class E-B-F-H

Features and Advantages:

Noiseless

Small in leakage

Small in no-load current

Small internal resistance

Slow over-carrier motion

Low iron loss

Low copper loss

Low temperature rise

High efficiency

High electric strength

Good flame retardation

Novel and unique structure

Application Areas:

Industrial control, audio equipment, signal devices, office equipment, communication equipment, instrumentation, testing equipment and medical equipment, etc.

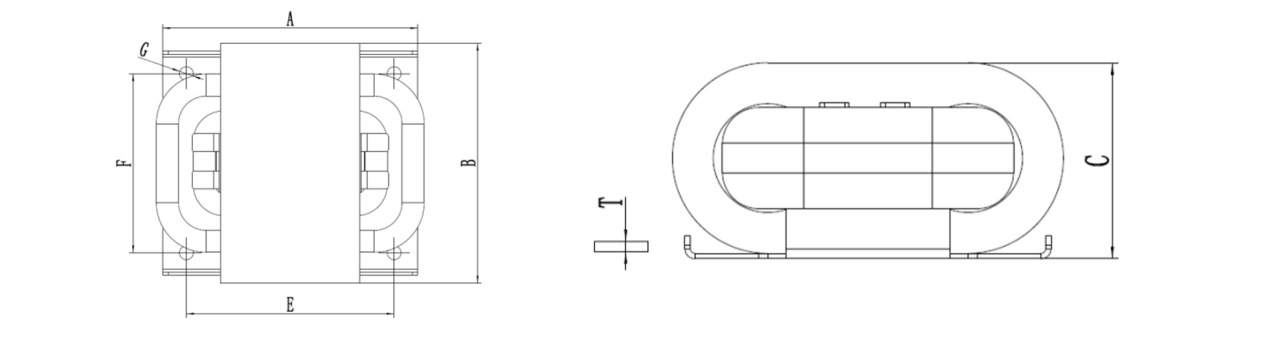

Specitication

Capacity(VA)

Boundar Dimension(mm)

Instalation Dimnsion(mm)

Instatation Aerture(mm)

Thickness of Base ptat (mm)

±0.5 mm

±0.1mm

AxBxC

E

F



T

R-10

12VA

75*61*38

685

48

4

0.5

R-20

25VA

82*70*40

55

45

4

1

R-30

40VA

97°44*45

70

60

5

1

R-40

50VA

100*80*50

70

60

5

1

R-50

60VA

103*92*50

75

65

5

1

R-60

9OVA

126*90*53

90

70

5

1

R-100

120VA

127°103*56

100

09

5

1.2

R-160

200VA

140*115*65

100

85

5

1.6

R-260

300VA

156*12068

130

95

5

1.6

R-320

360VA

165*128*72

135

95

5

1.6

R-600

650VA

186*145*88

142

100

8

16

R-800

B50VA

191*157*90

145

115

8

2

R-1000

1100VA

227*172*100

180

140

8

2.6

R-1500

1600VA

240*180*105

185

145

8

2.6

R-2000

2200VA

245-200*108

185

160

8

3

R-3000

3500VA

265*228*128

200

180

8

3

R-5000

5500VA

395*302*185

300

240

8

3

These parameters above are onty for reterence Piease refer to the technical dranings for detailed parameters. If the secondary of the transformer is duplex winding or mutiple winding please inform the voltage and current of each group to cacutate the power.

Since 1995

Zhejiang Ilander Electric Co., Ltd.

Zhejiang Ilander Electric Co., Ltd.is a professional manufacturer of power transformers and electronic transformers, located in Pinghu, Jiaxing, adjacent to the prosperous city-Shanghai, in China.
Since 1995, our experienced R&D department has always been committed to finding the best solution for each project, which is based on the needs of customers and combined with necessary commercial considerations.
Our products are widely used in power transmission and distribution engineering, power distribution room, household appliances, traffic lights, sanitary ware, elevator, electric welding machine, mechanical equipment, electrical test bench, medical instruments, communication, audio, car charging pile, charger, inverter and other fields.

company advantage

Advantage：
-About 30 years experience in transformer
-Free design and sample service
-Best quality、fast delivery and competitive price
-The latest technology、professional designers and skilled workers
-Automation equipment and production line
-Annual output more than 20 million pieces

faqto solve your doubt

  • Are you manufacturer?

  • What's the payment term?

  • What about the delivery time?

  • Can you provide OEM or ODM?

  • Can you produce according to our samples?

  • What's your sample's policy?

Get A Quote Now

Recommended Products:

NEWS CENTER

Industry knowledge

An R-core transformer is a type of single-phase electrical transformer that uses an R-shaped magnetic core. The R-shape of the core provides a larger surface area for the windings, which can result in higher efficiency and improved power density compared to traditional transformers.
Single-phase R-core transformers are commonly used in a variety of applications, including power supplies, audio equipment, and lighting systems. They are also used in industrial and commercial applications, such as process control systems and HVAC systems.
One of the key advantages of R-core transformers is their high efficiency. The R-shape of the core provides a more uniform magnetic field, which results in less energy being lost as heat compared to traditional transformers. This makes R-core transformers more energy-efficient and environmentally friendly.
R-core transformers are also smaller in size and lighter in weight compared to traditional transformers, making them easier to transport and install. Additionally, the R-shape of the core can reduce electromagnetic interference (EMI), which can cause interference with other electrical devices.
Overall, R-core transformers offer several advantages over traditional transformers, including higher efficiency, smaller size, lower weight, and lower EMI. These characteristics make R-core transformers an attractive choice for a wide range of applications.
The structure of a single-phase R-core transformer typically consists of the following components:
Magnetic Core: The R-shaped magnetic core is the central component of the transformer and is made from a magnetic material, such as iron, nickel, or cobalt.
Primary Winding: The primary winding is the input winding of the transformer and is wound around the R-shaped magnetic core. It is connected to the power source.
Secondary Winding: The secondary winding is the output winding of the transformer and is wound around the R-shaped magnetic core in a different location from the primary winding. It is connected to the load.
Insulation: Insulation is used to separate the primary and secondary windings to prevent electrical shock and to maintain the electrical separation between the windings.
Enclosure: The transformer is typically housed in an enclosure to protect it from environmental factors, such as dust, moisture, and temperature changes.
In a single-phase R-core transformer, the R-shaped magnetic core provides a more uniform magnetic field compared to traditional transformers, which results in higher efficiency and improved power density. The R-shape of the core also reduces electromagnetic interference (EMI), which can cause interference with other electrical devices.
Overall, the structure of a single-phase R-core transformer is designed to provide high efficiency, compact size, and improved performance compared to traditional transformers. These characteristics make R-core transformers an attractive choice for a wide range of applications.

If you are interested in our R Core Transformer Single-phase Transformer R10 or have any questions, please consult us.
