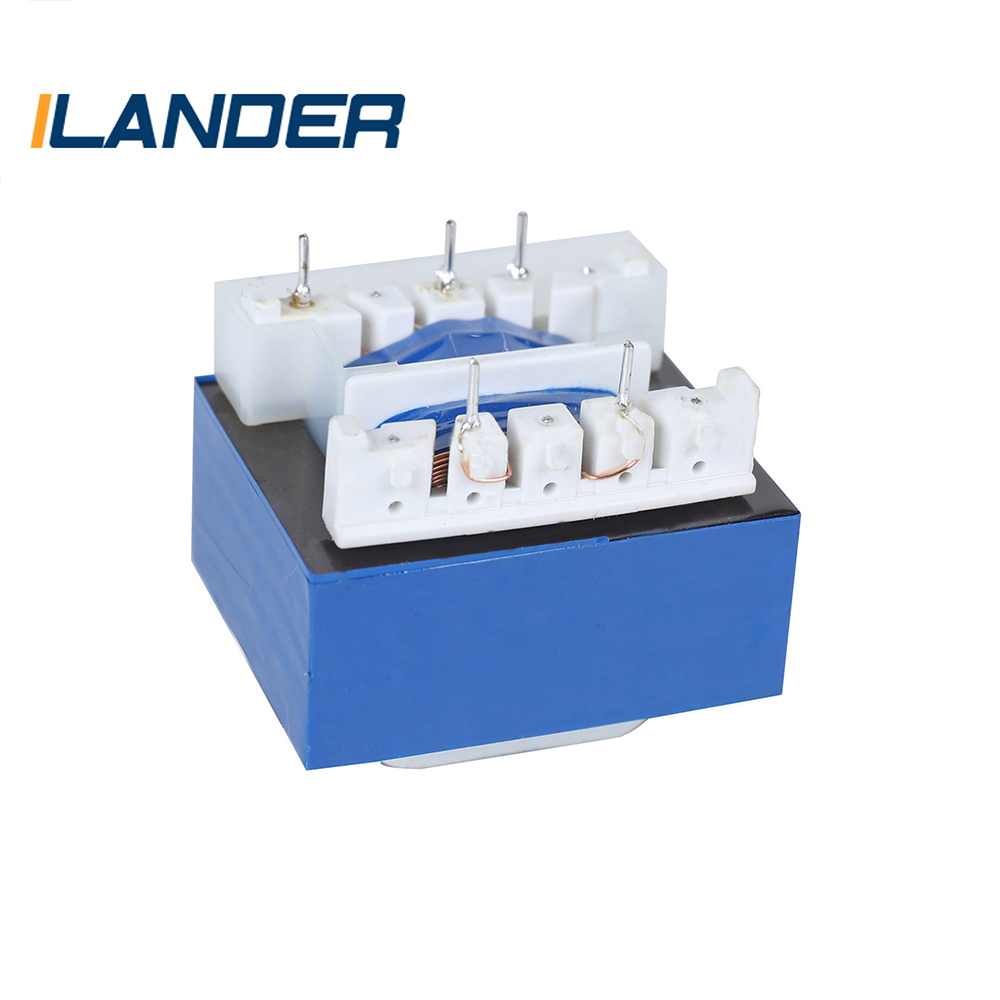

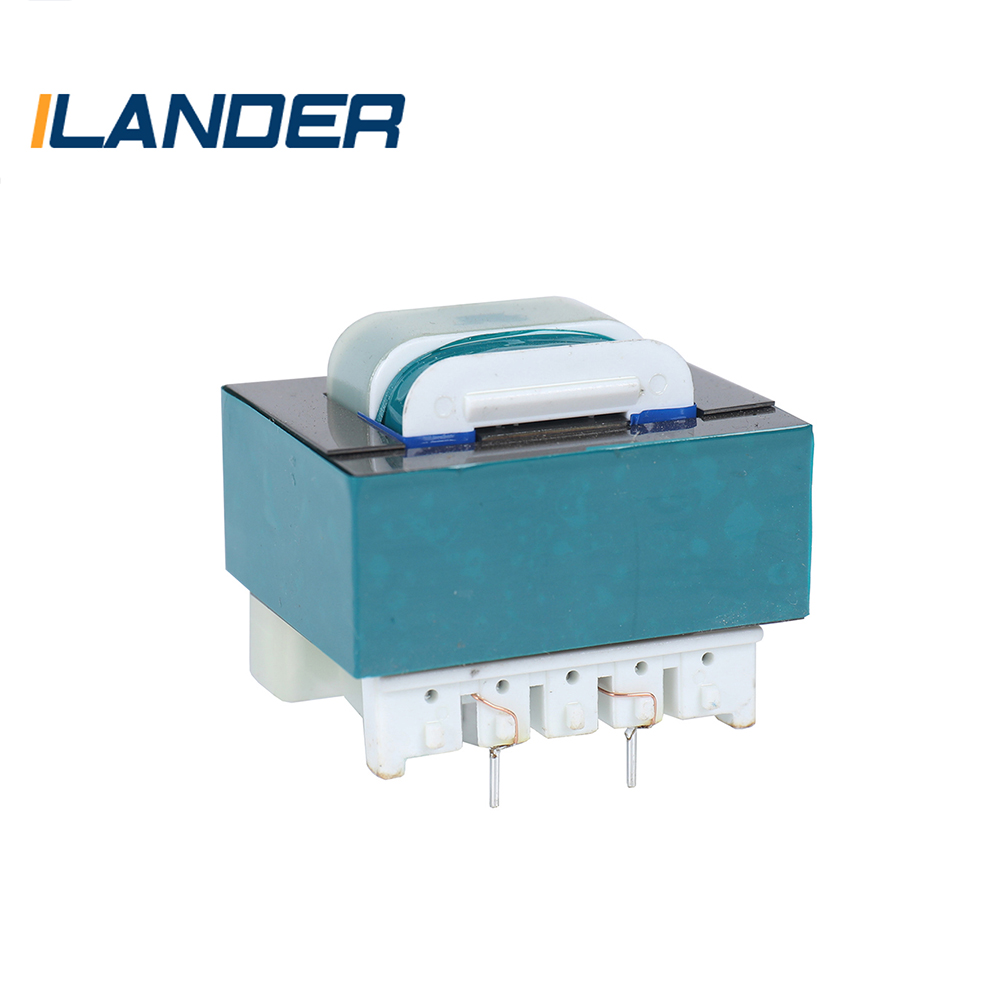

EI Core Transformer
Classification: Power Transformer
Structure Classification: EI Iron-core Transformer
Sort by Phase Number: Single Phase Transformer
Input Voltage: 110V, 220V, 380V (customizable)
Output Voltage: 6V-220V (customizable)
Frequency: 50Hz/60Hz
Insulation Class: Class E-B-F-H
Features and Advantages:
Low Price
High saturation voltage
Long service life
Allow short time overload, can provide excess power or provide excess current (1-3 times rated current)
Application Areas:
TV power supply, monitor, switching power supply, navigation, medical equipment, instruments, air conditioners, flue-cured tobacco drying equipment, etc.

Speciticatons
|
Capacity(VA)
|

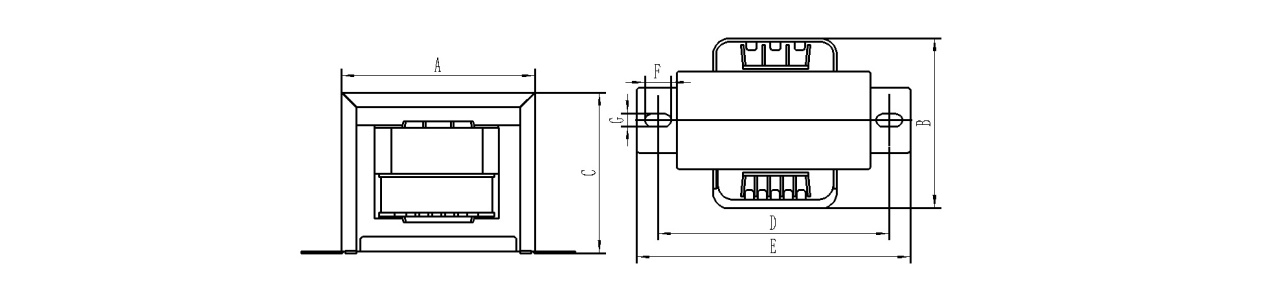

Boundary Dimension(mm)
|
Needle Spacing(mm)
±0.5mm
|
Row Spaong(mm) ±0.5mm
|
Skeleton Number
|
AxBxC
|
E
|
F
|
G
|
|
E28*15.3+5P
|
1
|
29*29*27
|
74
|
4.9
|
192
|
2815ZWW3+5C
|
EV35*153+4P
|
2
|
36*31*30
|
75
|
6
|
22
|
3515ZWW3+4B
|
EW41*18 4·5P
|
3
|
42*34*35
|
73
|
562
|
23
|
4118zww4+5B
|
EV41*204+5P
|
5
|
42"34*36.5
|
72
|
5.0
|
225
|
4120zww4+5A
|
EW41*264·5P
|
6
|
42*34*43
|
7.4
|
490.1
|
202
|
4126zww4+58
|
EV48*20 5+5P
|
8
|
49*41*37.5
|
7.5
|
7.5
|
295
|
4820zww5+5A
|
EW48*245+5P
|
10
|
49*41*41.5
|
7.5
|
7.5
|
295
|
4824zww5+5A
|
D57*206-6P
|
12
|
58*48*41
|
4.9
|
4.9
|
37
|
5720zww6+6A
|
E357*307·7P
|
18
|
58*48*50.5
|
5
|
5
|
32
|
5730zww7+7L
|
The types of pins are: I needle, straight needle, round needle and square needle; hot needle and cold needle. Please contact us for details of skeleton.The above table parameters are for reference only. Please refer to the technical drawings for detailed parameters. When the secondary winding of transformer is double winding or multi winding, please inform the voltage and current of each group so as to calculate the power. For more information, please contact us.
|
