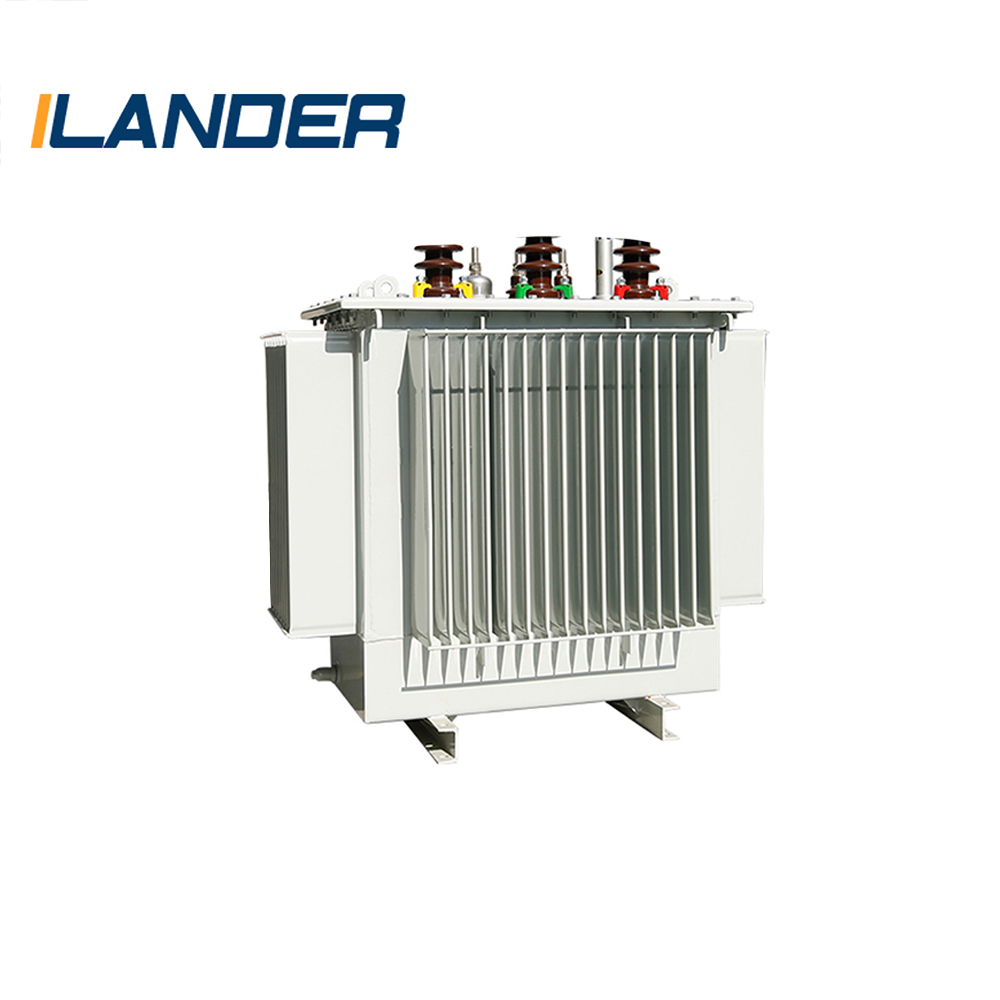

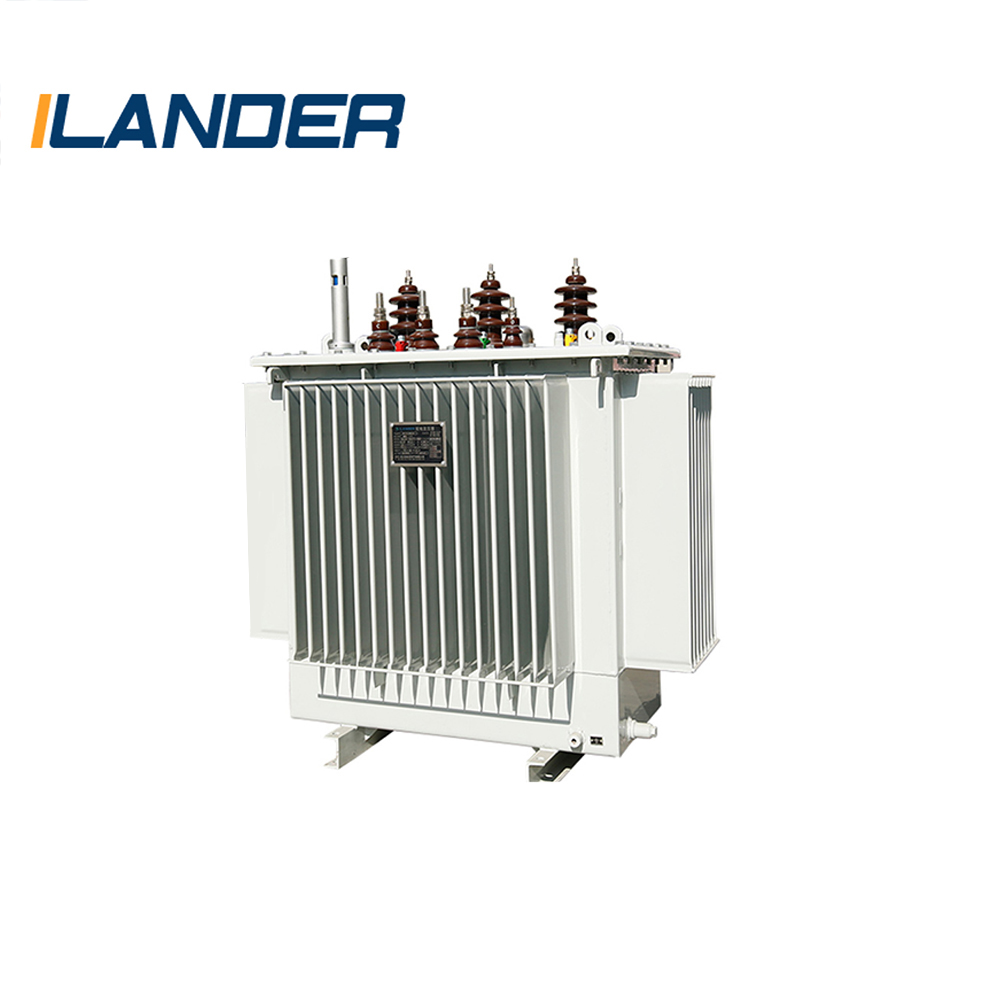

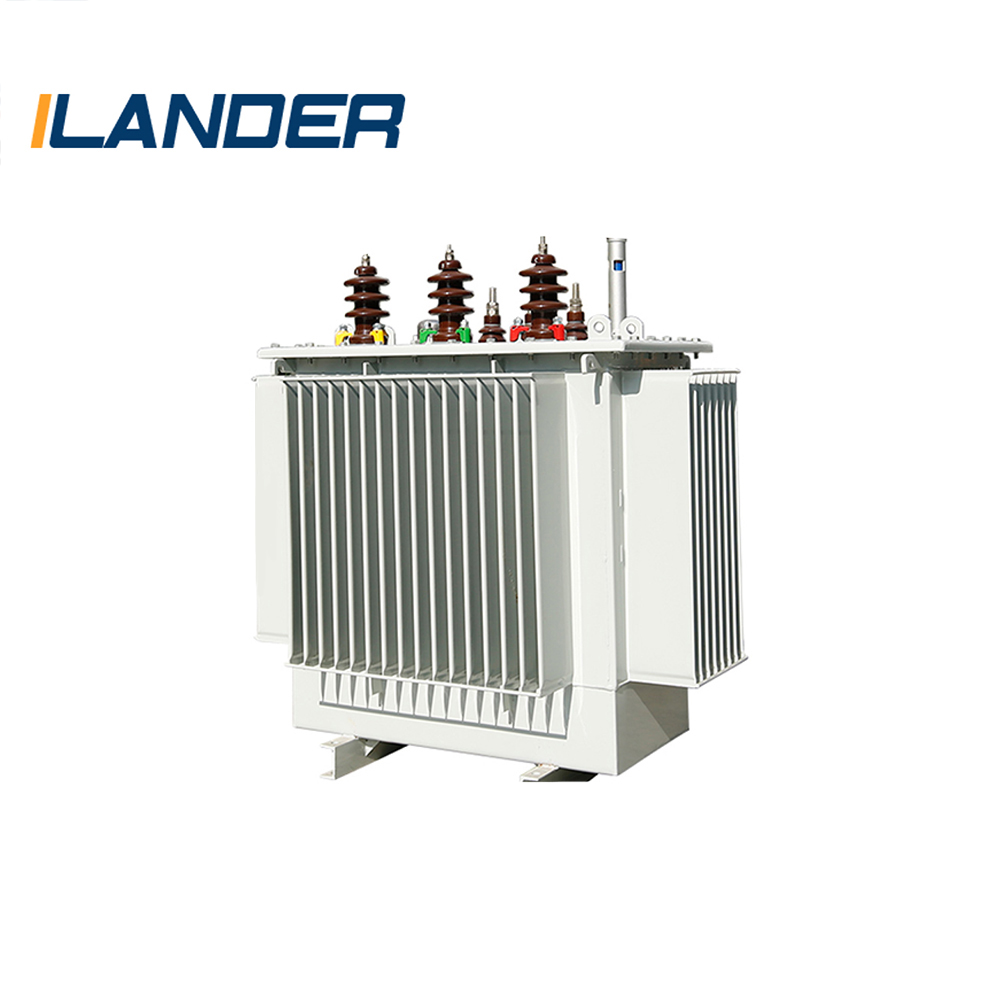

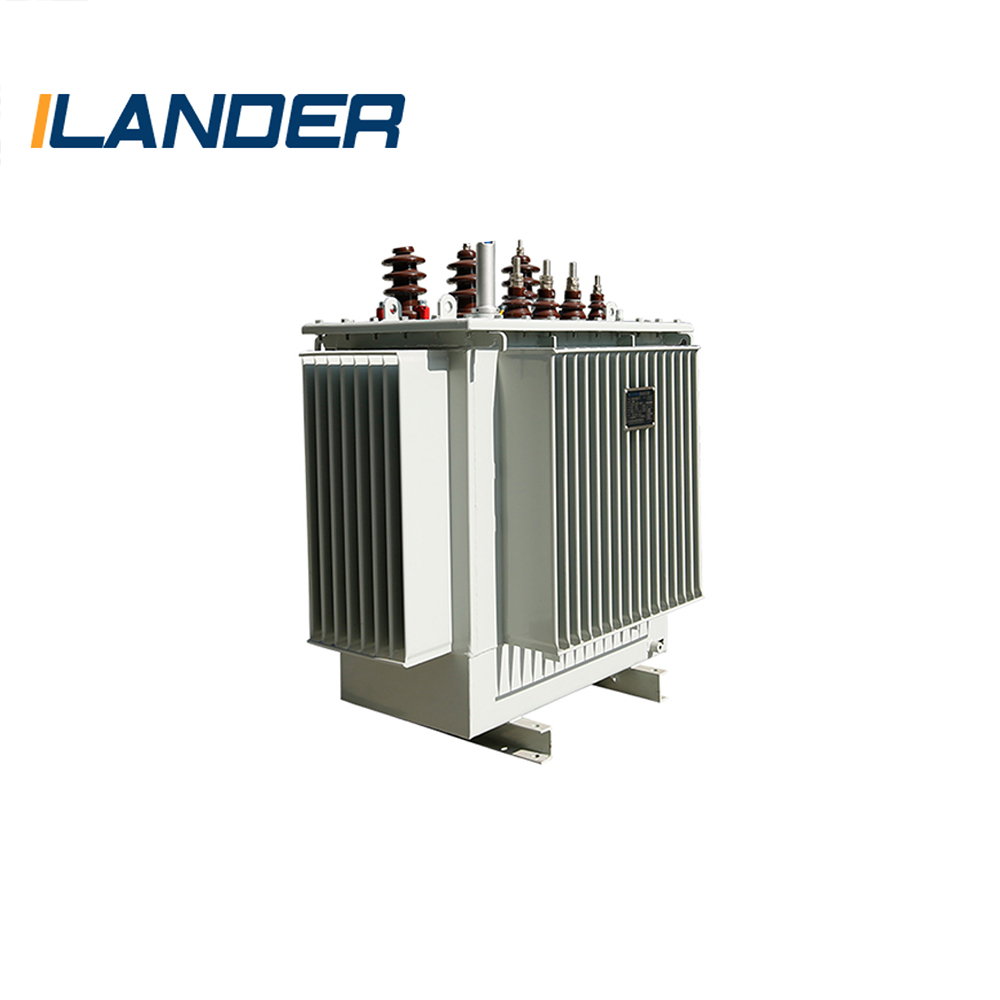

High Voltage Transformer Power Supply Power Station Transformer
  • High Voltage Transformer Power Supply Power Station Transformer details
  • High Voltage Transformer Power Supply Power Station Transformer details
  • High Voltage Transformer Power Supply Power Station Transformer details
  • High Voltage Transformer Power Supply Power Station Transformer details

High Voltage Transformer Power Supply Power Station Transformer

The oil-immersed transformer is mainly composed of the main body of the transformer (iron core, winding, insulating material, lead wire and tap changer), the oil tank (the main body of the oil tank, the accessories including the oil drain valve, earthing screw, nameplate, etc.), cooling device (radiator, cooler), protective device (oil storage cabinet, oil margin, airway, desiccator, temperature measurement element and gas relay), outgoing line device (high and low voltage tube).
QUOTE NOW
PREV：No previous productNEXT：No next product

PRODUCT DESCRIPTION

High Voltage Transformer
Classification: Power Transformer
Type: Oil-immersed Transformer
Winding: High and Low Voltage Winding, Low Voltage Winding, Foil Winding Structure
Frequency: 50Hz/60Hz
Insulation Class: A Class

Features and Advantages:
Shock absorption and high impact performance
Small footprint and beautiful appearance
Preventing the deterioration of the oil and the insulation of the body from being damp
High reliability and maintenance free for normal operation

Application Areas:
Industrial and mining enterprises, agriculture, water conservancy, residential communities, etc.

Technical Data of 10kV Class S11-M-30~2500/10 Transformer

Model

Po

PK75℃
UK

Io

LpA

Gross Weight

Oil Weight

Size (mm)

W

W
%

%

dB

kg

kg

Length

Width

Height

Gauge(horizontal x vertical)

S11-M-30/10

100

630

4







4.5









5

1.5

50

253

60

695

500

860

300x400

S11-M-50/10

130

910

1.3

50

307

67

725

630

865

300x400

S11-M-63/10

150

1090

1.2

50

360

78

730

640

890

300x400

S11-M-80/10

180

1310

1.2

52

427

85

755

069

920

400x400

S11-M-100/10

200

1580

1.1

52

513

95

765

710

930

400x400

S11-M-125/10

240

1890

1.1

54

593

110

795

740

945

400x400

S11-M-160/10

280

2310

1

54

680

125

835

790

980

400*400

S11-M-200/10

340

2730

1

56

787

140

1130

770

1010

400x550

S11-M-250/10

400

3200

0.9

56

933

155

1200

830

1050

400x550

S11-M-315/10

480

3830

0.9

58

1067

180

1300

900

1070

550x550

S11-M-400/10

570

4520

0.8

58

1293

206

1325

915

1095

550x550

S11-M-500/10

680

5410

0.8

60

1507

235

1450

1020

1140

550x550

S11-M-630/10

810

6200

0.6

60

1733

270

1540

1100

1150

550x660

S11-M-800/10

980

7500

0.6

62

2093

310

1580

1120

1190

550x660

S11-M-1000/10

1150

10300

 0.6

62

2387

354

1610

1150

1250

099x099

S11-M-1250/10

1360

12000

0.5

65

2840

420

1660

1190

1300

660x660

S11-M-1600/10

1640

14500

0.5

65

3387

510

1710

1210

1430

660x820

S11-M-2000/10

1940

18300

0.4

65

4160

600

1810

1300

1450

660x820

S11-M-2500/10

2290

21200

0.4

67

4840

684

1930

1400

1530

660x820

The outline size and weight listed in the above table are for the reference of design selection only, and the final dimensions are based on the outline diagram.

Technical Data of 10kV Class S12-M-30~2500/10 Transformer

Model

Po

PK75℃
UK

Io

LpA

Gross Weight

Oil Weight

Size(mm)

W

W
%

%

dB

kg

kg

Length

Width

Height

Gauge(horizontal x vertical)

S12-M-30/10

90

630

4







4.5















5







1.5

50

263

62

695

500

850

300x400

S12-M-50/10

120

910

1.3

50

318

69

725

630

865

300x400

S12-M-63/10

130

1090

1.2

50

372

81

730

640

068

300*400

S12-M-80/10

150

1310

1.2

52

441

87

755

069

920

400x400

S12-M-100/10

170

1580

1.1

52

525

98

765

710

930

400x400

S12-M-125/10

200

1890

1.1

54

605

113

795

740

945

400x400

S12-M-160/10

240

2310

1

54

700

130

835

790

980

400*400

S12-M-200/10

280

2730

1

56

802

145

1130

770

1010

400x550

S12-M-250/10

340

3200

0.9

56

955

158

1200

830

1050

400x550

S12-M-315/10

410

3830

0.9

58

1090

186

1300

900

1070

550x550

S12-M-400/10

490

4520

0.8

58

1322

211

1325

915

1095

550x550

S12-M-500/10

580

5410

0.8

60

1535

241

1450

1020

1140

550x550

S12-M-630/10

069

6200

0.6

60

1760

274

1540

1100

1150

550x660

S12-M-800/10

840

7500

0.6

62

2126

316

1580

1120

1190

550x660

S12-M-1000/10

990

10300

0.6

62

2415

360

1610

1150

1250

099x099

S12-M-1250/10

1170

12000

0.5

65

2885

430

1660

1190

1300

099x099

S12-M-1600/10

1410

14500

0.5

65

3441

525

1710

1210

1430

660x820

S12-M-2000/10

1750

18300

0.4

65

4220

615

1810

1300

1450

660x820

S12-M-2500/10

2060

21200

0.4

67

4910

703

1930

1400

1530

660x820

Thlii  litd i thb tbl for the reference of desi selection onland the final dimensions are based on the outline diagram

Technical Data of 10kV Class S13-M-30~2500/10 Transformer
Model

Po

PK75℃
UK

Io

LpA

Gross Weight

Oil Weight

Size(mm)

W

W
%
%

dB

kg

kg
Length
Width

Height
Gauge(horizontalx vertical)

S13-M-30/10

80

630

4







4.5







5







1.5

50

291

64

705

505

865

300x400

100

910

1.3

50

342

71

735

635

870

300x400

S13-M-50/10

S13-M-63/10

110

1090

1.2

50

424

86

740

640

910

300

S13-M-80/10

130

1310

1.2

52

481

93

760

695

950

400x400

S13-M-100/10

150

1580

1.1

52

563

105

775

715

960

400x400

S13-M-125/10

170

1890

1.1

54

642

120

810

750

970

400x400

S13-M-160/10

200

2310

1

54

736

142

840

800

1000

400*400

S13-M-200/10

240

2730

1

56

849

153

1150

780

1030

400x550

S13-M-250/10

290

3200

0.9

56

976

170

1210

820

1080

400x550

S13-M-315/10

340

3830

0.9

58

1130

198

1320

890

1110

550x550

S13-M-400/10

410

4520

0.8

58

1383

224

1340

920

1125

550x550

S13-M-500/10

480

5410

0.8

60

1610

257

1480

1030

1190

550x550

S13-M-630/10

570

6200

0.6

60

1870

286

1560

1110

1200

550x660

S13-M-800/10

700

7500

0.6

62

2165

329

1590

1120

1230

550x660

S13-M-1000/10

830

10300

0.6

62

2486

380

1630

1150

1280

660x660

S13-M-1250/10

970

12000

0.5

65

2932

442

1700

1200

1330

099x099

S13-M-1600/10

1170

14500

0.5

65

3510

540

1750

1230

1470

660x820

S13-M-2000/10

1550

18300

0.4

65

4316

635

1850

1310

1540

660x820

S13-M-2500/10

1830

21200

0.4

67

5053

753

1970

1420

1610

660x820

The outline size and weight listed in the above table are for the reference of design selection only, and the final dimensions are based on the outline diagram.
Since 1995

Zhejiang Ilander Electric Co., Ltd.

Zhejiang Ilander Electric Co., Ltd.is a professional manufacturer of power transformers and electronic transformers, located in Pinghu, Jiaxing, adjacent to the prosperous city-Shanghai, in China.
Since 1995, our experienced R&D department has always been committed to finding the best solution for each project, which is based on the needs of customers and combined with necessary commercial considerations.
Our products are widely used in power transmission and distribution engineering, power distribution room, household appliances, traffic lights, sanitary ware, elevator, electric welding machine, mechanical equipment, electrical test bench, medical instruments, communication, audio, car charging pile, charger, inverter and other fields.

company advantage

Advantage：
-About 30 years experience in transformer
-Free design and sample service
-Best quality、fast delivery and competitive price
-The latest technology、professional designers and skilled workers
-Automation equipment and production line
-Annual output more than 20 million pieces

faqto solve your doubt

  • Are you manufacturer?

  • What's the payment term?

  • What about the delivery time?

  • Can you provide OEM or ODM?

  • Can you produce according to our samples?

  • What's your sample's policy?

Get A Quote Now

Recommended Products:

NEWS CENTER

Industry knowledge

A High Voltage Transformer is a type of electrical transformer that is used to increase the voltage of an alternating current (AC) electrical supply. The purpose of a high voltage transformer is to transmit electrical energy over long distances with minimal energy loss. High voltage transformers are widely used in the power generation, transmission, and distribution industries.
High voltage transformers work by transforming the voltage of an AC electrical supply from a low level to a high level, typically in the range of tens of kilovolts. This enables the electrical energy to be transmitted over long distances with minimal energy loss, as the high voltage reduces the current and thus the resistance losses in the transmission lines. At the destination, the voltage is then stepped down to a level that is usable by the load.
High voltage transformers must be designed and operated to meet strict quality and reliability standards to ensure their safe and effective operation. They must have appropriate insulation to withstand the high voltages and currents that are present, as well as the temperature and other environmental conditions to which they are exposed. Additionally, they must have sufficient power capacity to meet the demands of the load.
High voltage transformers are used in several applications, including:
Power Generation: High voltage transformers are used in power generation plants to step up the voltage of the electrical energy generated to high levels, making it possible to transmit the energy over long distances with minimal energy loss.
Power Transmission: High voltage transformers are used in the electrical power transmission network to transmit electrical energy over long distances. The high voltage reduces the current and thus the resistance losses in the transmission lines, making it possible to transmit the energy with minimal energy loss.
Power Distribution: High voltage transformers are used in the electrical power distribution network to step down the voltage of the electrical energy transmitted over long distances to a level that is usable by the load.
Industrial Applications: High voltage transformers are used in industrial applications to provide the high voltage required for certain types of equipment and processes.
Electric Utilities: High voltage transformers are used by electric utilities to step up the voltage of the electrical energy generated at power plants to high levels, making it possible to transmit the energy over long distances with minimal energy loss.
These are just a few of the many applications of high voltage transformers. The specific application of a high voltage transformer will depend on the requirements of the system in which it is used and the requirements of the load.

If you are interested in our High Voltage Transformer Power Supply Power Station Transformer or have any questions, please consult us.
