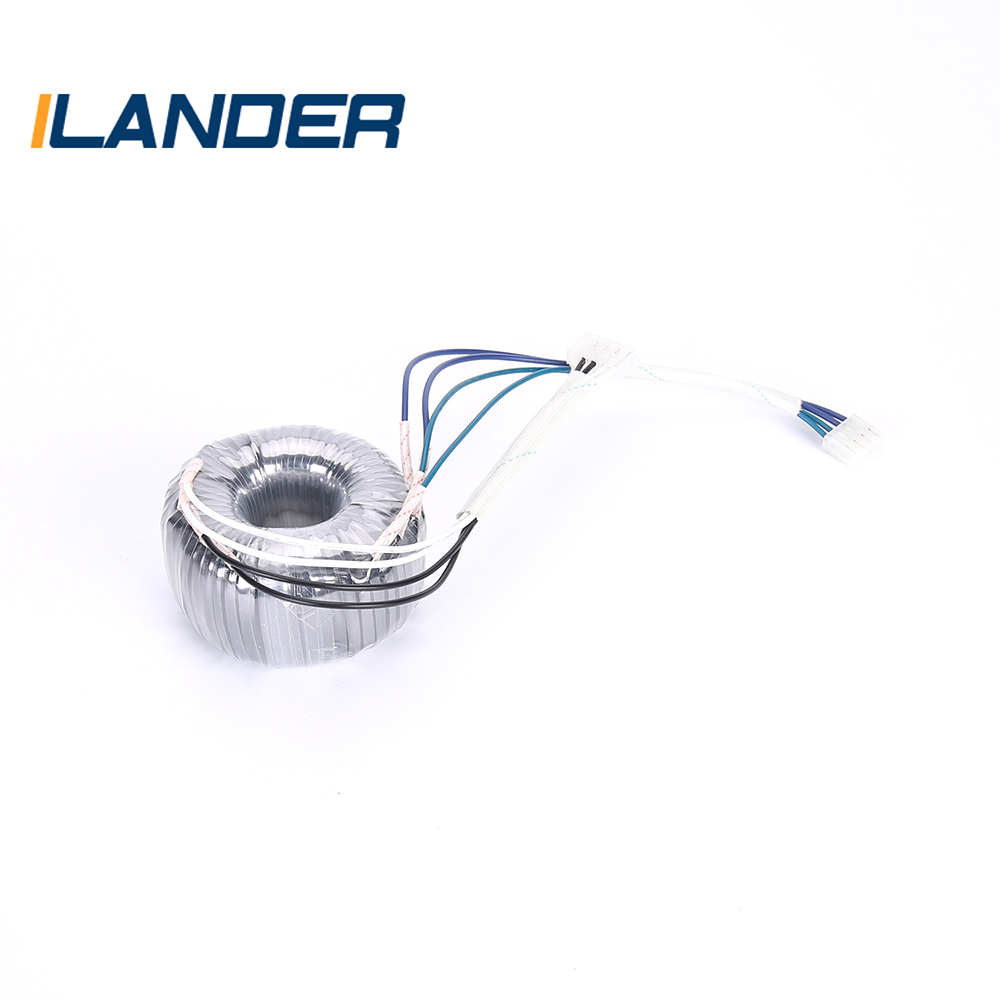

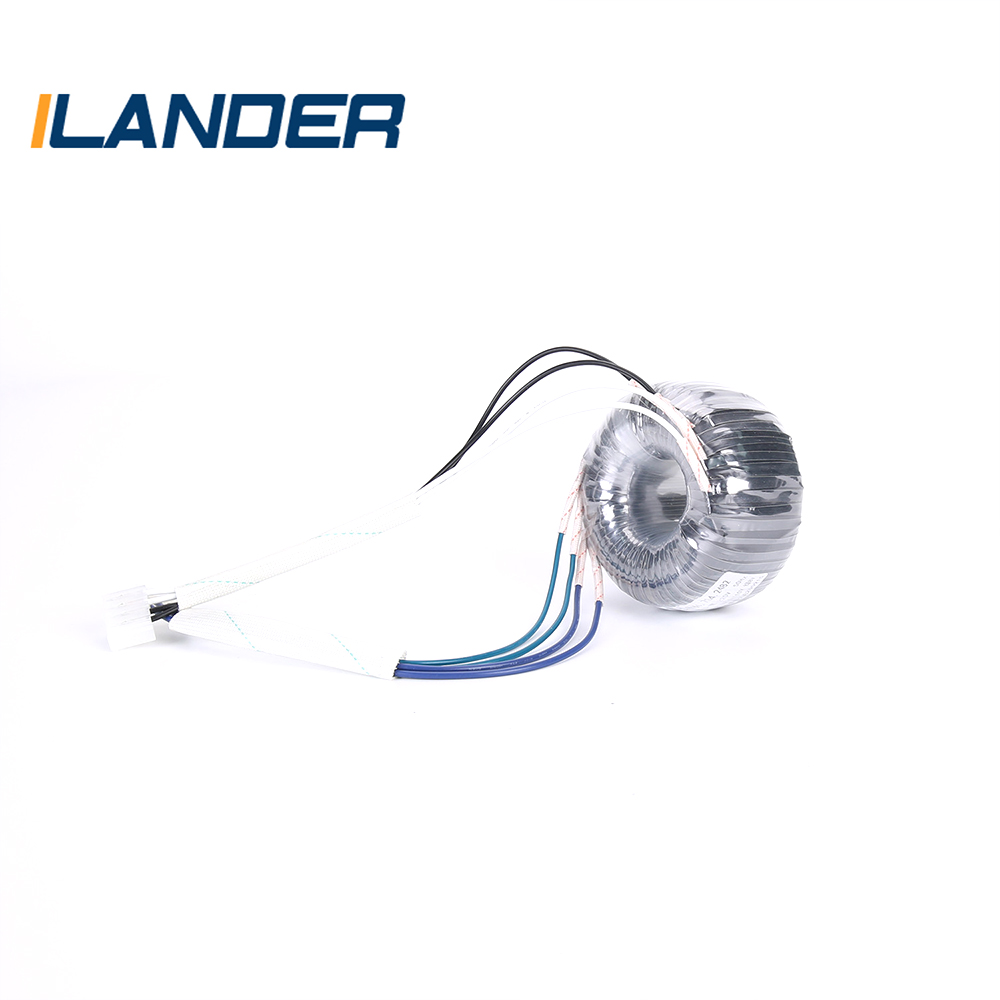

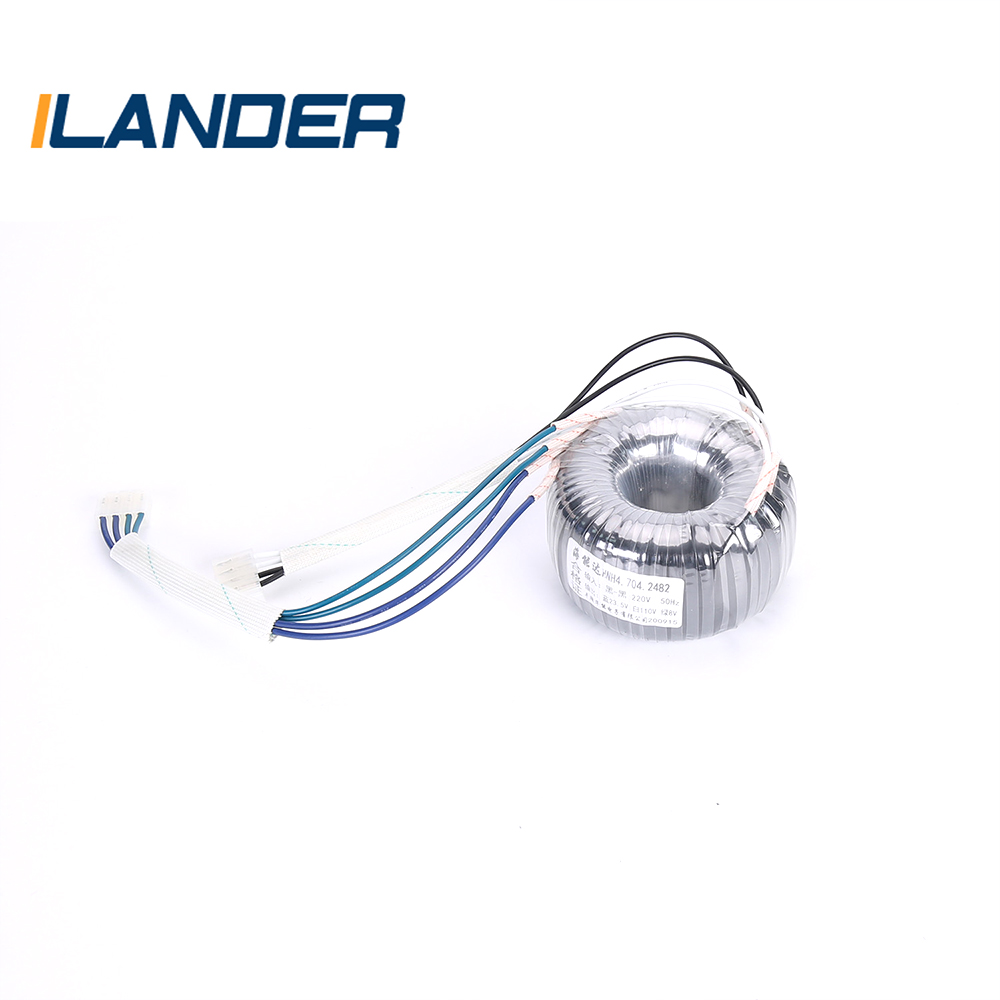

Toroidal Transformer OD70VA Power Supply
  • Toroidal Transformer OD70VA Power Supply details
  • Toroidal Transformer OD70VA Power Supply details
  • Toroidal Transformer OD70VA Power Supply details

Toroidal Transformer OD70VA Power Supply

A toroidal transformer is a toroidal core structure with windings arranged in a multi-turn cylindrical arrangement. Characteristics: multi-turn winding, small size. It is suitable for large current transmission in power systems and is one of the commonly used equipment in transmission lines and substations. Working principle: When alternating current passes through the coil, an induced electromotive force will be generated. When the voltages at both ends of the coil are equal, the generated electromotive force will be the largest; otherwise, the electromotive force will be the smallest.

QUOTE NOW
PREV：Toroidal Transformer OD30VA Electronic Transformer Iron CoreNEXT：No next product

PRODUCT DESCRIPTION

Toroidal Transformer

Class: Power Transformer

Structure Classification: Toroidal Iron-core Transformer

Sort by Phase Number: Single Phase Transformer

Input Voltage: 110V, 220V, 380V (customizable)

Output Voltage: 6V-220V (customizable)

Frequency: 50Hz/60Hz

Insulation Class: Class E-B-F-H

Features and Advantages:

Lower radiation field

Higher efficiency

Lower temperature

Easily installed

Short production cycle

Low noise

Application Areas:

Industrial control, audio equipment, signal devices, office equipment, communication equipment, instrumentation, testing equipment and medical equipment, etc.



lron-core

Capacity (VA)

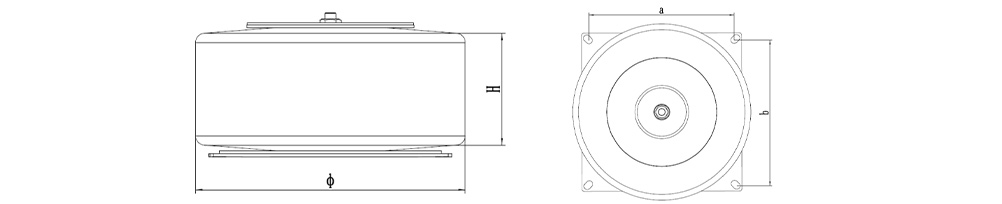

Boundary Dimension

Installation Dimension

on-core

pacy

HxΦ(mm)

axb(mm)

H-100

100VA

55*98

80*80

H-200

200VA

60*110

06*06

H-300

300VA

70*120

105*105

H-400

400VA

75*130

105*105

H-500

500VA

80*135

115*115

H-600

600VA

82*147

120*120

H-700

700VA

85*150

125*125

H-800

800VA

90*145

130*130

H-1000

1000VA

95*155

135*135

These parameters above are only for reference.Please refer to the technical drawings for detailed parameters.
If the secondary of the transformer is duplex winding or multiple winding,please inform the voltage and current of each group to calculate the power.
