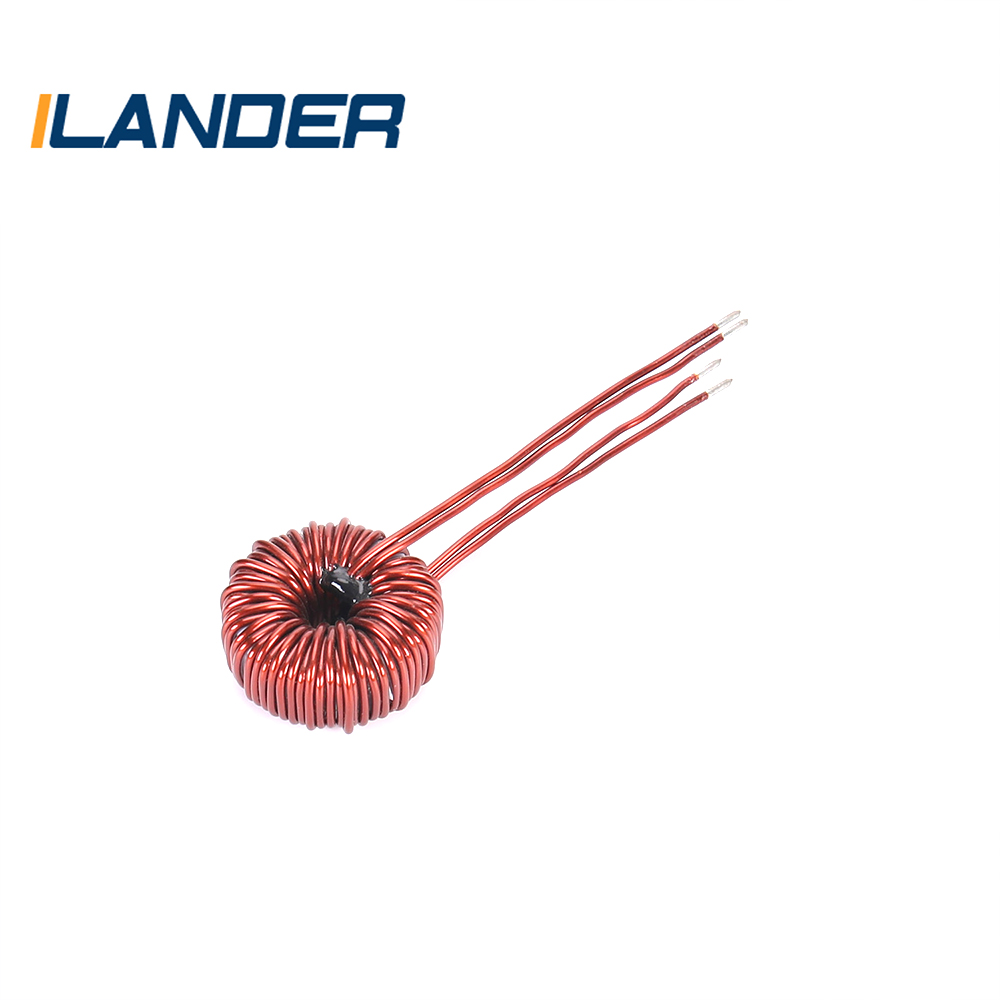

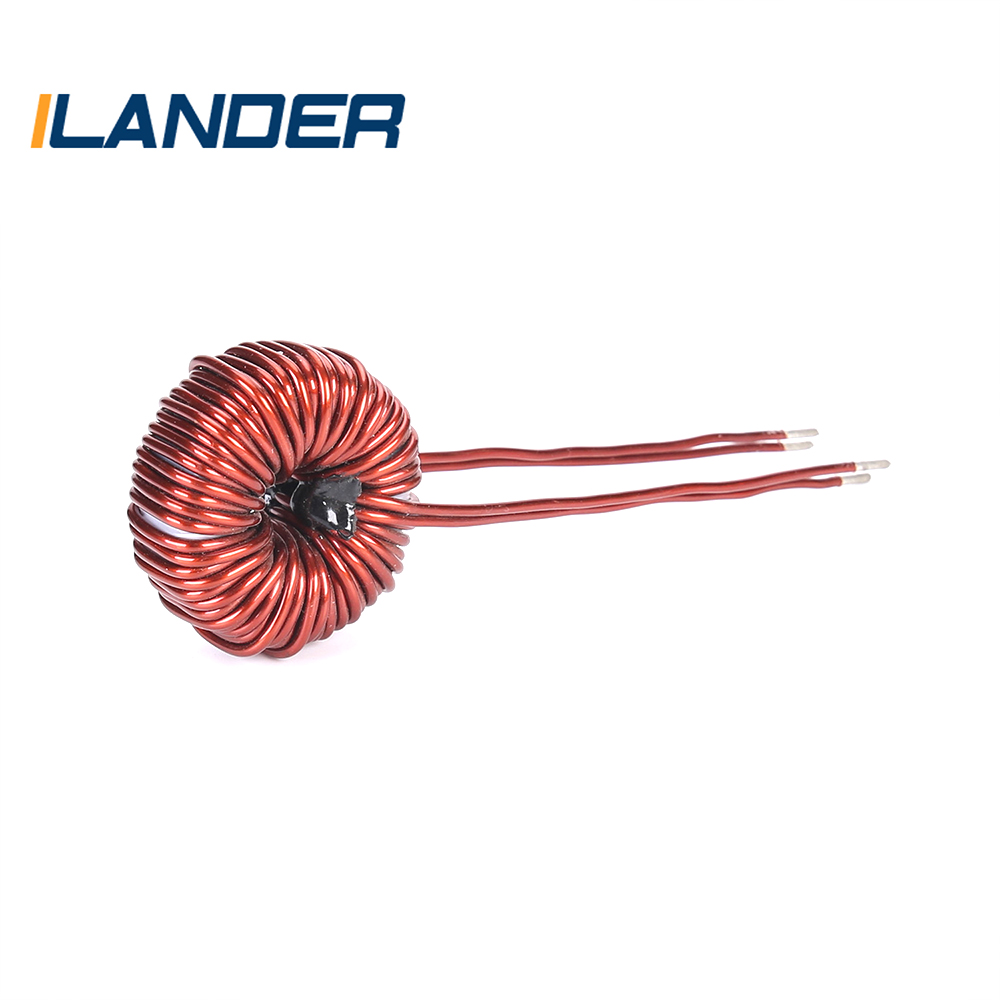

Coil Industrial Power Output Filter Inductors Suppliers

Home / Product / Coil / Coil Industrial Power Output Filter Inductor

Get A Quote Now

NEWS CENTER

  • Machining method of iron core

    The iron core is an important part of the power transformer. It undertakes the important tasks of conducting magnetic flux, reducing losses, and impro...
    2024-03-26
  • Transformer moisture-proof

    Transformers play a vital role in electrical systems as they are responsible for converting electrical energy from one voltage level to another to mee...
    2024-03-26
  • Transformer Classification

    Enclosed Transformer: This type of transformer is enclosed in a metal box for optimal moisture resistance. However, due to their high cost and large s...
    2024-03-22
  • Transformer Developments In 2023

    In 2023, the transformer industry experienced significant growth and development, marking one of the best periods in the last 50 years. This surge in ...
    2024-03-15

Industry knowledge

A coil is a component consisting of a conductor, typically wire wound around a core. The core can be made of materials such as iron, ferrite, or air. The number of turns, the type of core material, and the diameter of the wire determines the inductance of a coil.

Coils are used in a wide range of electrical and electronic applications, including:
Transformers: Coils are used as the primary and secondary windings in transformers to transfer electrical energy from one circuit to another.
Inductive heating: Coils are used to heat materials through induction by generating an alternating magnetic field.
Inductive sensors: Coils are used as the sensing element in inductive sensors to detect the presence of metal objects or measure changes in magnetic fields.
Electromagnetic actuators: Coils are used as the magnetic element in electromagnetic actuators to generate linear or rotary motion.
Inductive power transfer: Coils are used to wirelessly transfer power over short distances through magnetic induction.
RF circuits: Coils are used as resonant elements in RF (radio frequency) circuits to tune the circuit to a specific frequency.
Chokes: Coils are used as chokes to suppress high-frequency signals and limit the flow of AC current in a circuit.
Motors and generators: Coils are used in motors and generators to produce and control magnetic fields.
These are just a few examples of the many applications of coils in electrical and electronic systems.
The characteristics of a coil depend on various factors, including:
Inductance: Inductance is the property of a coil that resists changes in the current flowing through it, causing a magnetic field to be generated. The inductance of a coil is proportional to the number of turns, the cross-sectional area of the conductor, and the permeability of the core.
Self-resonant frequency: The self-resonant frequency of a coil is the frequency at which the coil's inductance and capacitance resonate with each other, creating a resonant circuit.
Q factor: The Q factor is a measure of the quality of the resonant circuit formed by the coil and its capacitance. It is defined as the ratio of the energy stored in the coil to the energy lost per cycle.
Wire resistance: The wire resistance is the resistance of the conductor material used to wind the coil. This resistance can cause heating and power losses in the coil.
Leakage inductance: The leakage inductance is the inductance that exists between the turns of a coil and between the coil and its core. It can cause power losses and reduce the efficiency of the coil.
Saturation: Saturation is the condition in which a coil's magnetic core reaches its maximum magnetic permeability, beyond which any additional magnetic field will not cause a significant increase in the magnetic flux density. Saturation can cause power losses and reduced efficiency in the coil.
Frequency response: The frequency response of a coil is its ability to respond to signals over a range of frequencies. The frequency response of a coil is affected by its inductance, capacitance, and resistance.
Core loss: The core loss is the power loss that occurs in the magnetic core due to the generation of heat when the magnetic field changes.
These are some of the important characteristics of a coil that can affect its performance and efficiency in various applications.

If you are interested in our Coil Industrial Power Output Filter Inductor or have any questions, please consult us.
